Electrical Box Cover Plate – Dual Cable Outlet

Über dieses Modell

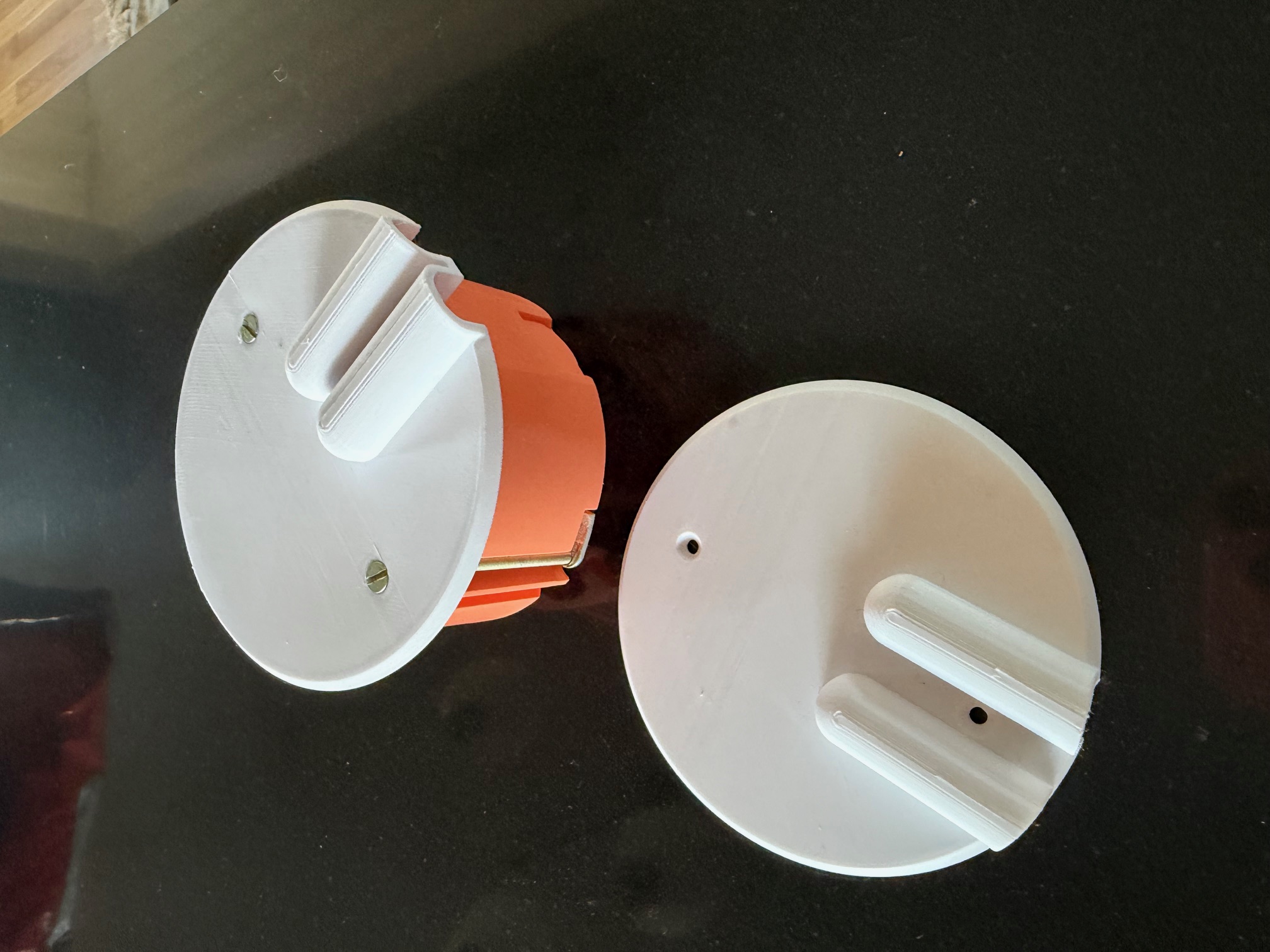

Electrical Box Cover Plate – Dual Cable Outlet A compact and simple cover plate for routing two power cables out of a standard electrical box. I needed a clean way to bring two cables out of the box without leaving the opening exposed, so I designed this cover plate around that exact use case. It keeps the installation tidy, prints quickly, and requires no supports. Two versions included Parallel version – cable outlets run parallel to the mounting holes Perpendicular version – cable outlets are rotated 90° relative to the mounting holes This makes it easier to choose the orientation that best suits the installation. Dimensions Mounting hole spacing: 60 mm center-to-center Cover plate diameter: 90 mm Cable size: 3G1.5 mm², approx. 9 mm outer diameter Printing No supports required Standard print settings work well Ironing is optional, but gives the top surface a noticeably cleaner finish Quick and easy print, designed to do one job without taking up unnecessary space. Remixing The original Fusion 360 .f3d file is also included, making it easy to modify or remix the design if you need different cable dimensions, spacing, or orientation.
